Product Overview

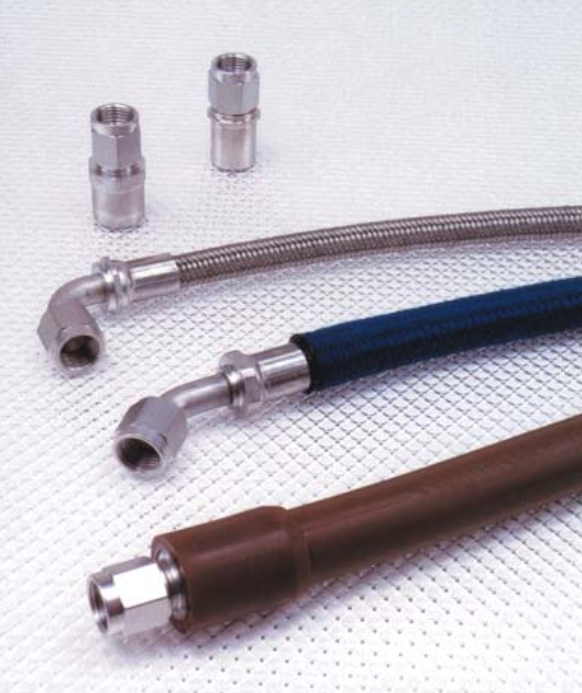

Teflon-hoses

Stratoflex hose 101

Lightweight, enhanced bend radius, low pressure, fuel or lube oil systems

SAE 4897 and AS150 Type IaB

  • Temperature range:
    -65 to +450ºF (-54 to +232ºC)
  • Reinforcement:
    corrosion-resistant steel wire braid
  • Inner tube:
    seamless, extruded, conductive PTFE
  • Description:
    lightweight, low pressure, high temperature, engine hose
  • Application:
    high temperature fuel or lube systems with pressures below 1000 PSI, requiring lighter weight and smaller bend radius.
  • Additional information:
    101 hose was developed for Pratt & Whitney for the F119 Jet Engine. It is lighter than 124 and has a better bend radius.

Stratoflex hose 124

Medium pressure TFE, general applications

MIL-DTL-27267, AS1946, MIL-DTL-25579

  • Temperature range:
    -65 to +450ºF (-54 to +232ºC)
  • Reinforcement:
    corrosion-Resistant steel wire braid(s) (Suffix “Z” indicates two wire braid construction)
  • Description:
    high compatibility, non-ageing, multi-applicable
  • Inner tube:
    extruded, conductive PTFE
  • Application:
    high temperature, medium pressure, aircraft and missile fuel, lube oil, coolant, hydraulic, ballistic and pneumatic systems

Stratoflex hose 170

Extreme stress, high pressure, hydraulic systems

AS604 (previously MIL-H-38360)

  • Temperature range:
    -65 to +400ºF (-54 to +204ºC)
  • Reinforcement:
    corrosion resistant steel wire
  • Inner tube:
    extruded, conductive PTFE
  • Description:
    heavy duty 3000 PSI, non-ageing aircraft hose
  • Application:
    high temperature and high pressure aircraft and missile hydraulic systems in high vibration applications.
  • Additional information:
    this hose is commonly used for high vibration applications where extreme integrity is required, such as at the hydraulic pump outlet.

Stratoflex hose 171

Lightweight, high pressure TFE, hydraulic systems

AS1339 (previously MIL-H-38360), AS1624

  • Temperature range:
    -65 to +400ºF (-54 to +204ºC)
  • Reinforcement:
    high density braid of small diameter cress wire
  • Description:
    lightweight 3000 PSI. non-ageing aircraft hose
  • Inner tube:
    extruded, conductive PTFE
  • Application:
    high temperature and high pressure aircraft and missile hydraulic systems

Stratoflex hose 191

High pressure aircraft only for hydraulic systems, integral abrasion resistance

AAS1339 (früher MIL-H-38360)

  • Temperature range:
    -65 to +275°F (54 to 135°C)
  • Reinforcement:
    high density braid of corrosion resistant steel wire
  • Inner tube:
    seamless extruded, conductive PTFE
  • Application:
    high pressure aircraft hydraulic systems (landing gear)
  • Description:
    high pressure landing gear hose
  • Additional information:
    covered with black/yellow CorduraTM for exceptional abrasion resistance

Stratoflex hose 3164

high pressure TFE

AS614

  • Temperature range:
    -65 to +400ºF (-54 to +204ºC)
  • Reinforcement:
    all reinforcement is corrosion resistant steel wire. Conductivity conforms to AS614
  • Description:
    400 psi, non-aging PTFE, bend radius same as AS604 hose
  • Inner tube:
    extruded conductive aerospace polytetrafluorethylene
  • Application:
    high temperature and high pressure aircraft and missile hydraulic systems

Stratoflex hose 3175

Medium pressure for fluid transfer systems

AS2078

  • Temperature range:
    -65 to +275°F (54 to 135°C)
  • Reinforcement:
    corrosion-resistant steel wire braid.
  • Inner tube:
    seamless extruded, conductive, smooth bore PTFE
  • Application:
    medium pressure, low temperature aerospace fluid transfer systems requiring a small bend radius and lightweight design. For use in non-fire zones.
  • Description:
    unlimited shell life, compatible with most fluids, lightweight design
  • Additional information:
    covered with Black Cordura ® abrasion resistant braid.

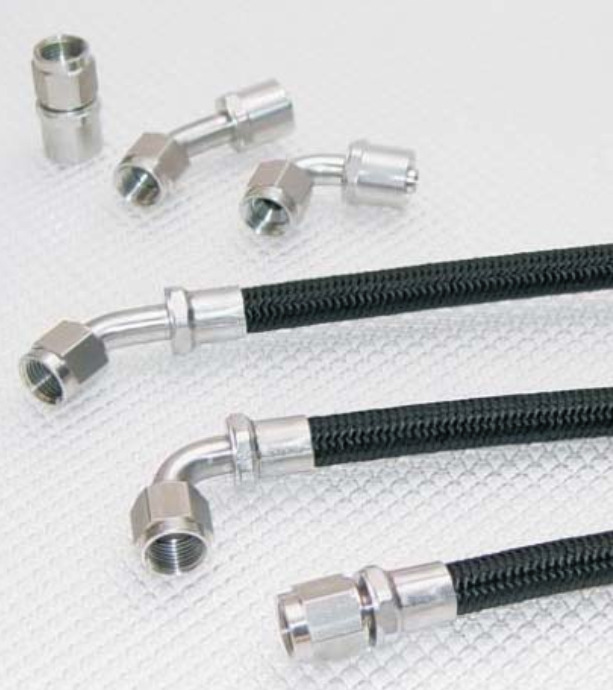

Rubber hoses

Stratoflex hose 111

Medium pressure, general applications

MIL-DTL-8794 (hose), MIL-DTL-8795 (hose assembly)

  • Temperature range:
    Size -3 to -12: -65 to +250°F (-54 to +121°C)
    Size -16 to -48: -40 to +250°F (-40 to +121°C)
  • Reinforcement:
    one fibre braid and one high tensile steel wire braid
  • Description:
    high pressure hydraulic hose
  • Inner tube:
    oil resistant elastomere
  • Application:
    aircraft Hydraulic, pneumatic, coolant, fuel and oil systems

Stratoflex hose 112

High pressure, hydraulic systems

MIL-DTL-8788 (hose), MIL-DTL-8790 (hose assembly)

  • Temperature range:
    -65° to 200°F (-54 to + 93°C)
  • Reinforcement:
    two or more high tensile steel wire braids
  • Application:
    3000 PSI hydraulic systems, air or inert gas. For gaseous service, the cover should be perforated
  • Description:
    high pressure hydraulic hose
  • Inner tube:
    compounded Seamless Polychloroprene

Stratoflex hose 130

Medium pressure with petroleum base fuel and oil

Superior bend radius and lighter as hose 111 MIL-DTL-8794

  • Temperature range:
    oil and fuel: -40 to +300°F (-40 to +149°C)
    oil and fuel (static) –95 bis +300°F (-55 bis +149°C)
    oil and air mixture: -40 bis +250°F (-40 bis +121°C)
  • Description:
    medium pressure general aviation applications
  • Reinforcement:
    one fiber braid and one high tensile steel wire braid
  • Inner tube:
    compounded Seamless Buna-N
  • Application:
    medium pressure service with petroleum based fuel and oil

Stratoflex hose 156

Medium pressure, HSP® elastomere, lightweight

MIL-DTL-83797 (hose), MIL-DTL-83796 (hose assembly)

  • Temperature range:
    -65 to +300°F (-54 to +149°C)
  • Reinforcement:
    one and one-half corrosion resistant steel wire braids
  • Inner tube:
    seamless HSP® oil resistant compounded inner-tube
  • Application:
    medium pressure service with most petoleum base oils, JP fuels, aviation gasoline, MIL-L-7808 and MIL-L-23699 lubricants, and many synthetic base fluids. Not affected by alcohols, coolants, and solvents common to the aerospace industry. Avgas has no affect on the Stratoflex HSP innertube.

Description:
medium pressure, lightweight hose for engine applications

Additional information:
Most common rubber hose for general purpose use. Preferred by helicopter OEMs. Replaces 113, 123 & 176 .

HSP got unlimited shelf life

Stratoflex Hose 193

Low pressure air and vacuum instrument systems

MIL-DTL-5593 (hose), AN-6720 (hose assembly)

  • Temperature range:
    -65 to +165°F (-54 to +74°C)
  • Reinforcement:
    one braid of high tensile fibre cord
  • Description:
    low pressure engine hose
  • Inner tube:
    compounded Seamless Buna-N
  • Application:
    vacuum service 20″Hg sizes -2 thru -6; 10″Hg sizes -8 and -10

Additional information
